220V Lab Fritsch Planetary Milling Machine 0.75KW for Dry Wet Grinding

Planetary ball mills consist of:

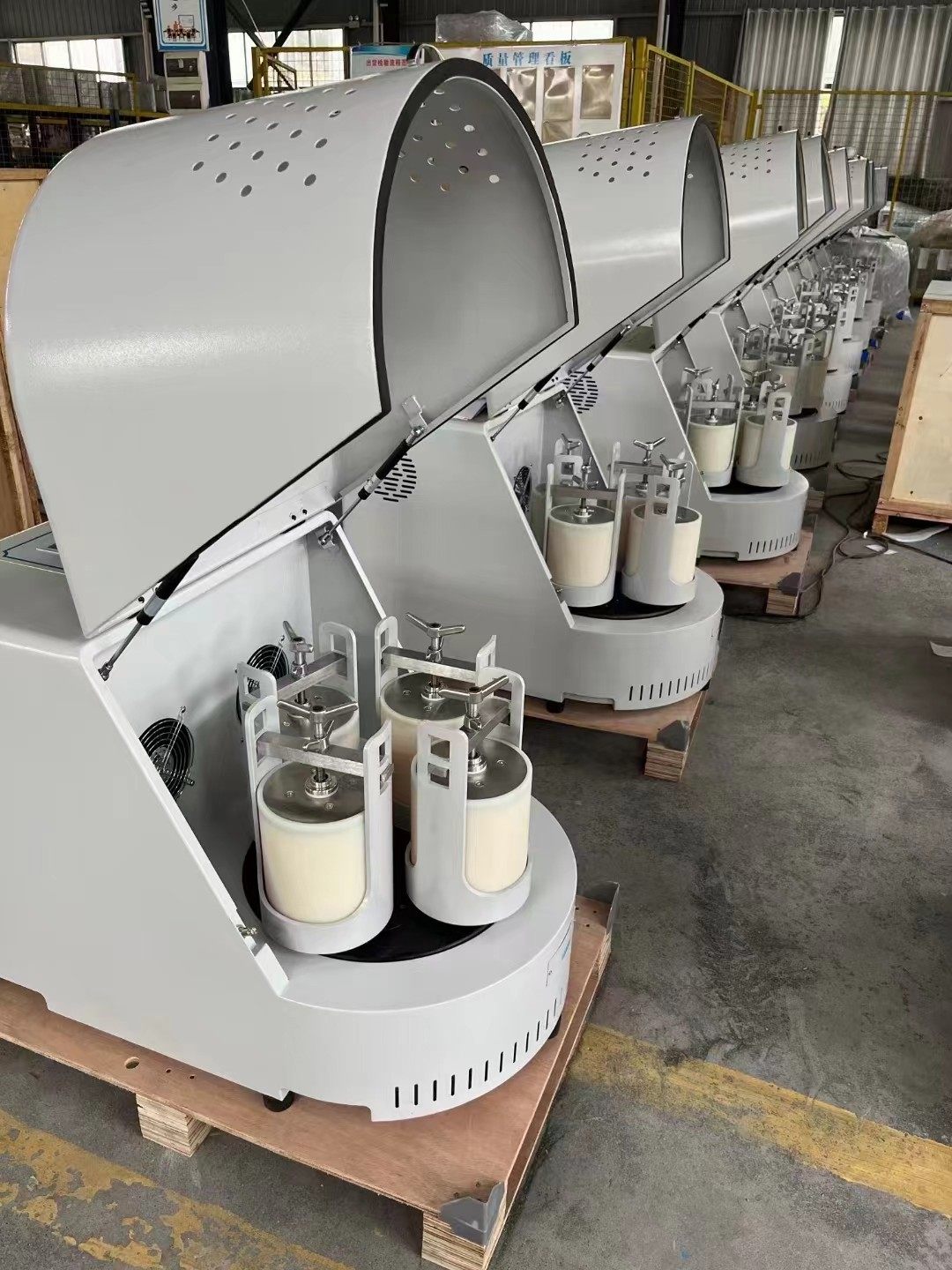

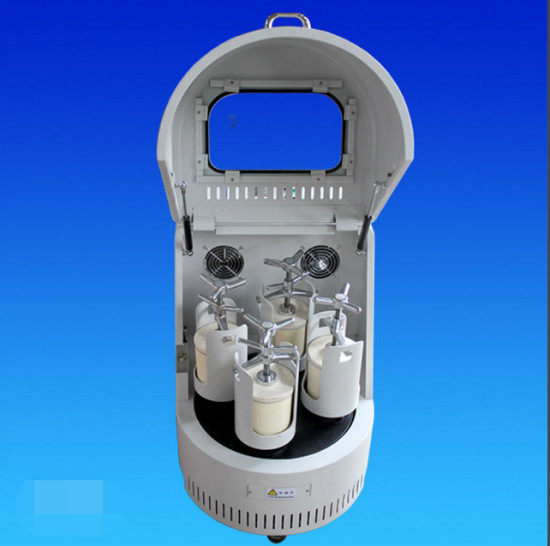

Rotating Jars (Grinding Chambers) – Typically 2 to 4 jars that rotate around a central axis.

Grinding Media – Balls made of stainless steel, zirconia, tungsten carbide, or other materials.

Drive System – A motor that controls the rotation speed (RPM) for optimal grinding efficiency.

Control Panel – Allows adjustment of speed, time, and direction (unidirectional or reversible).


Grinding Modes: Dry/Wet
Material Of Grinding Jar:Stainless Steel/Agate/Nylon/Corundum
Power:0.75KW
Model:XQM-2
Voltage:220V
Rotation Speed Ratio:2/3
Grinding Speed:Max 570 Rpm
Frequency:50Hz
Programmable Control:Yes
Max Feeding Capacity:2/3 Capacity Of The Grinding Jar
Weight:40kg
Timer:0-999min
Grinding Jar Volume:50ml
Dimension:500mm*300mm*340mm
